Brand Name : | VELLNICE |
Model Number : | R3B0644 |
Certification : | CE/RoHS |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 200000pcs/month |
Delivery Time : | 25 working days |
7W 0-10mm COB LED Depth-Adjustable Recessed Tiltable Downlight
Basic Information:
Brand Name: | Vellnice |
Model Number: | R3B0644 |
Certification: | CE/ROHS |
Place of Origin: | China |

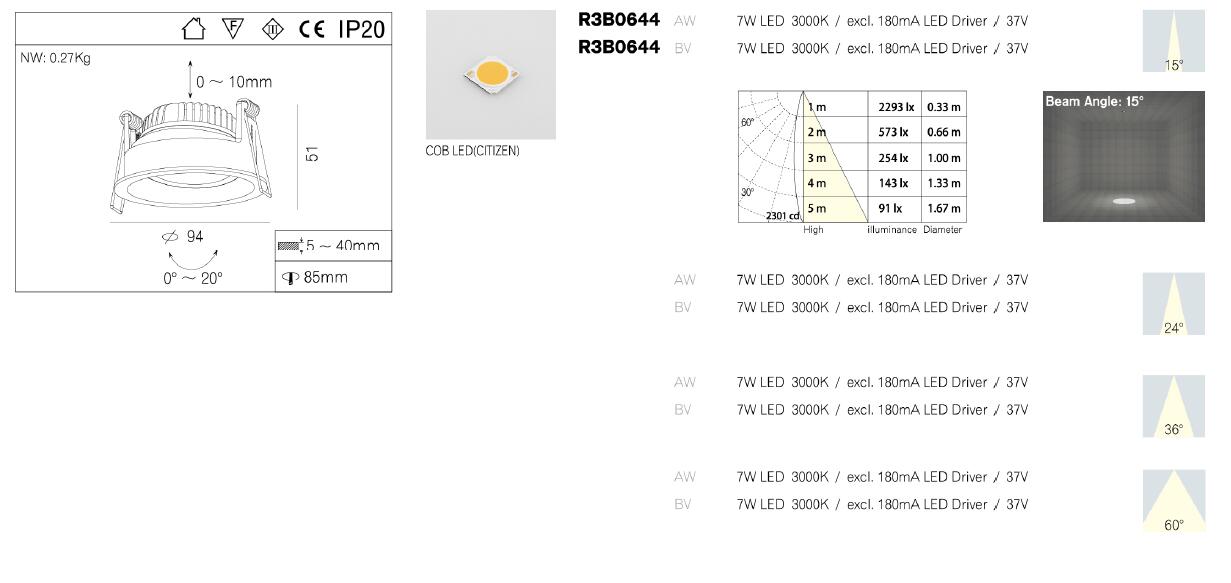

Specifications:
Technical Parameters | Size | Dia.94*H51mmmm |
Finishing | White/Black/Grey Powder Coating | |
IP Class | IP20 | |
Light Source | CITIZEN COB LED | |
Driver Specs | 37V, 180mA | |
Lens/Reflector | Shinland Refletor | |
Beam Angle | 15/24/36/60 | |
CCT | 2700K/3000K/4000K/5000K | |
Ra | >80 | |
Special function | 0-20deg tiltable, 0-10mm Depth Adjustable | |
Packing | Carton | 24pcs/CTN |
Carton Size | 495*375*330mm | |
Carton Weight | GW:8.4kg |
Trade Terms:
Minimum Order Quantity: | 10pcs |
Price: | Ex-works |
Payment Terms: | T/T |
Supply Ability: | 200,000pcs per month |
Delivery Time: | 25 working days after deposit |
Packaging Details: | White Inner Box, Outter Plain Carton |
Description:
Aluminium die-cast body and powder coating finishing. CITIZEN COB 180mA Typical 7W, 550 lumen output in CCT 2700K, 610 lumen output in CCT 3000K, 8mm narrow trim design. Multi-optical light output direction in 0-20deg tilt angle, 10mm distance in vertical level up and down position for anti-glare function by simple and reliable mechanical design. Compatible in 5-40mm ceiling thickness quick installation , suitable for use in areas like hotel room, corridor and ceiling height under 5 meters. Sales in Sacndinavia Area is forbidden.
![]() |
